AWNING COMPONENTS

Awning Components

Today’s awnings come in two basic types: Manually operated models which are opened by hand and motorized models which operate by electricity. Each offers its own advantages. Benefits include low-cost affordability, easy adaptability to almost any deck or patio, and support arms that can be angled back against the house or set vertically on the deck or patio floor. These arms provide extra support and stability which some owners prefer in windy areas, and increase the awning’s versatility by making the attachment of certain accessories available.

Motorized awnings have no vertical supports. Instead, they have retracting lateral arms, creating an unobstructed shaded area. These awnings are operated by an electric motor, generally hidden inside the roller bar of the awning. The arms open and close the awning at the touch of a wireless remote control or a wall-mounted switch.

Awning-Components

Roller Tube

Roller Tube



Available in 63mm, 70mm & 80mm diameter.

Lengths available:

  • 2.90 meter
  • 3.52 meter
  • 4.00 meter
  • 4.70 meter
  • 5.00 meter
  • 5.80 meter (in the 80mm diameter it comes in 1.20mm wall thickness)

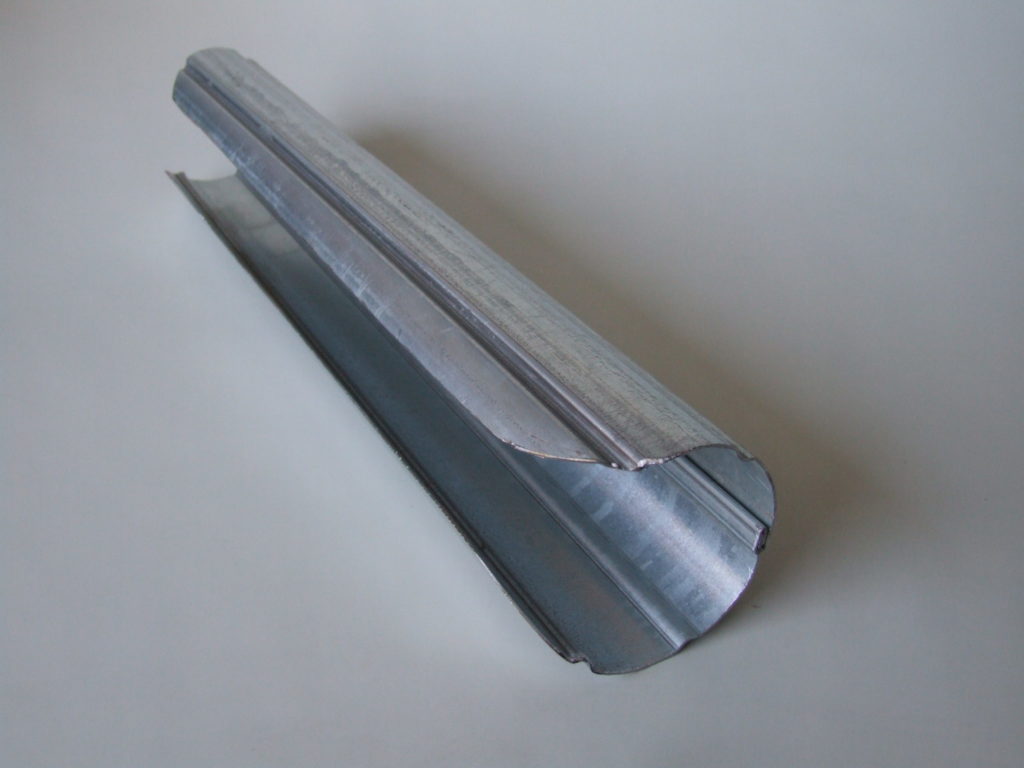

Tube Joiner

Tube Joiner





Tube Joiner

Available in 63mm, 70mm & 80mm diameter.

Crank Handle

 Crank Handle

Crank Handle

Lengths available:

  • 1.20 meter
  • 1.20 meter Black
  • 1.50 meter
  • 1.50 meter Black
  • 1.80 meter
  • 2.00 meter
  • 2.50 meter
  • 3.00 meter

End Cap Round Hole

End Cap Round Hole





End Cap Round Hole

Plastic end cap with a 14mm round hole. For use with a top roller bracket set which has the easy installer.

Available in 63mm, 70mm & 80mm diameter.

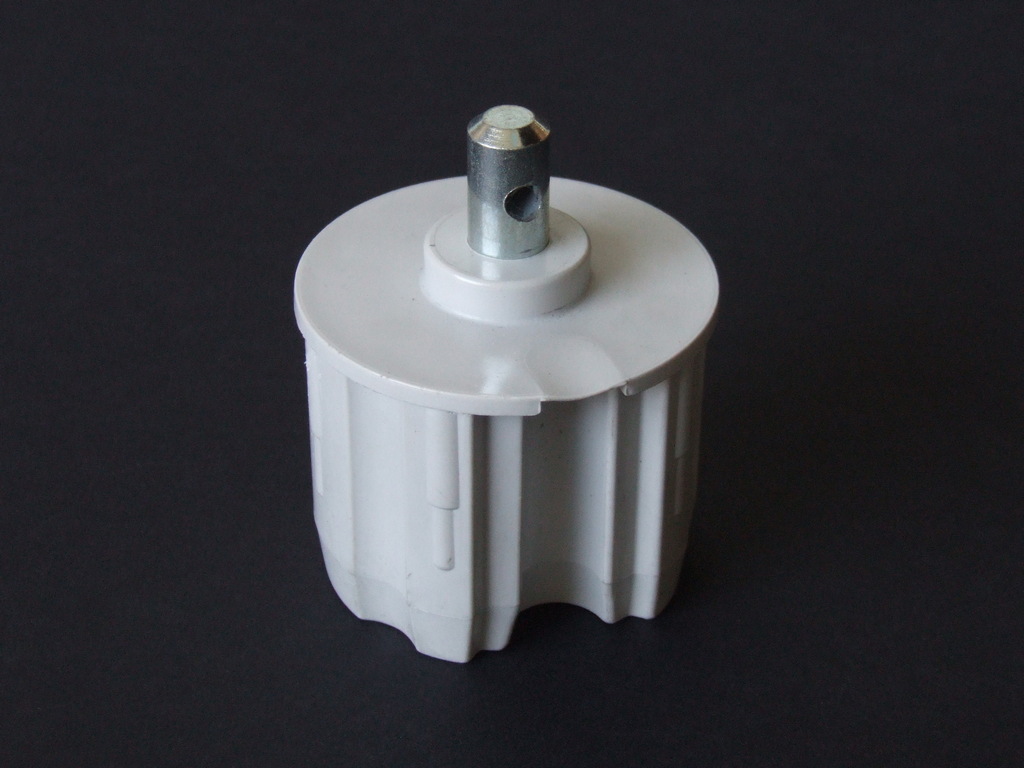

Bottom Roller End Cap

 Bottom Roller End Cap





Bottom Roller End Cap

Plastic end cap with a 12mm x 20mm round pin with drilled hole.

Only available in 63mm for use on a bottom bar.

End Cap Square Drive

End Cap Square Drive





End Cap Square Drive

Plastic end cap with 13mm x 40mm square drive, fits into gearbox.

Available in 63mm, 70mm & 80mm diameter.

End Cap Round Pin

 End Cap Round Pin





End Cap Round Pin

Plastic end cap with a 12mm x 20mm round pin. For use with the top roller bracket set which has the nylon bush.

Available in 63mm, 70mm & 80mm diameter.

Gear Box

Gear Box





Gear Box

Manual gear box used on drop blinds and awnings, ratio 9:1. Also available in black.

Crank handle sold separately.

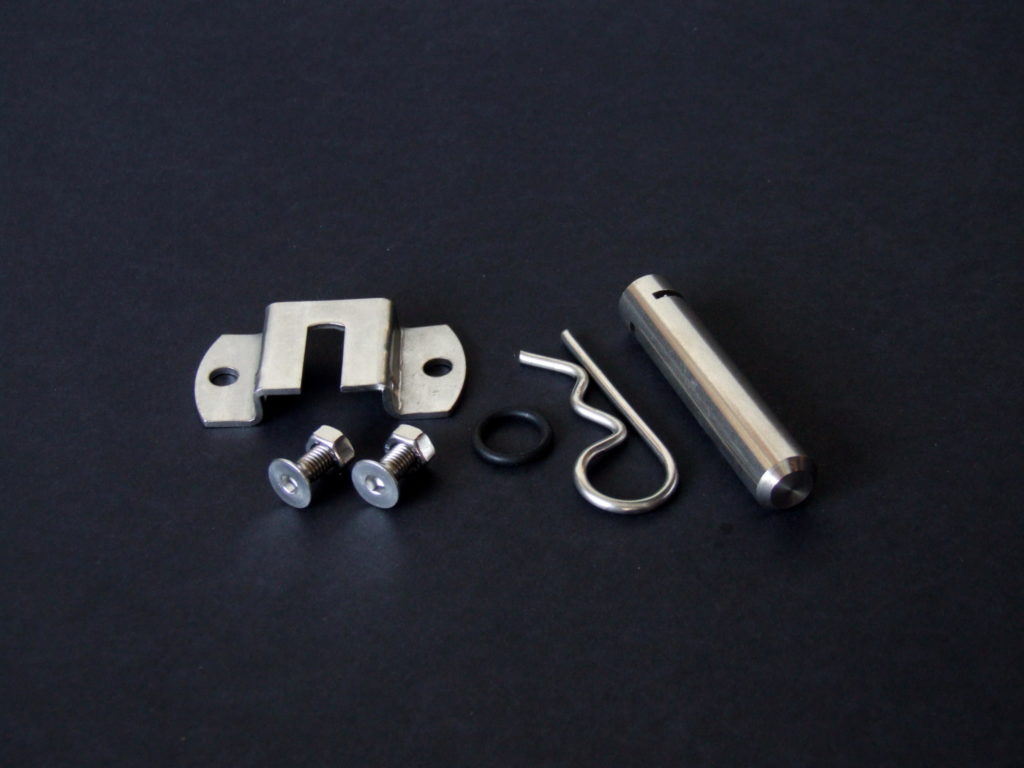

Easy Installer

Easy Installer





Easy Installer

Easy installer replacement set.

Top Roller Bracket – Face Fix

 Top Roller Bracket – Face Fix





Top Roller Bracket – Face Fix

Top roller bracket set, face fix with Easy installer included.

Top Roller Bracket – Side Fix

Top Roller Bracket – Side Fix





Top Roller Bracket – Side Fix

Top roller bracket set, side fix with Easy installer included.

Top Roller Bracket - Nylon Bush

Top Roller Bracket - Nylon Bush





Top Roller Bracket - Nylon Bush

Top roller bracket with nylon bush to accommodate 12mm round pin.

Top Roller Centre Support Bracket

Top Roller Centre Support Bracket





Top Roller Centre Support Bracket

Top roller center support bracket with bushes, long round pin and 14mm round hole.

Available in 63mm, 70mm & 80mm diameter.

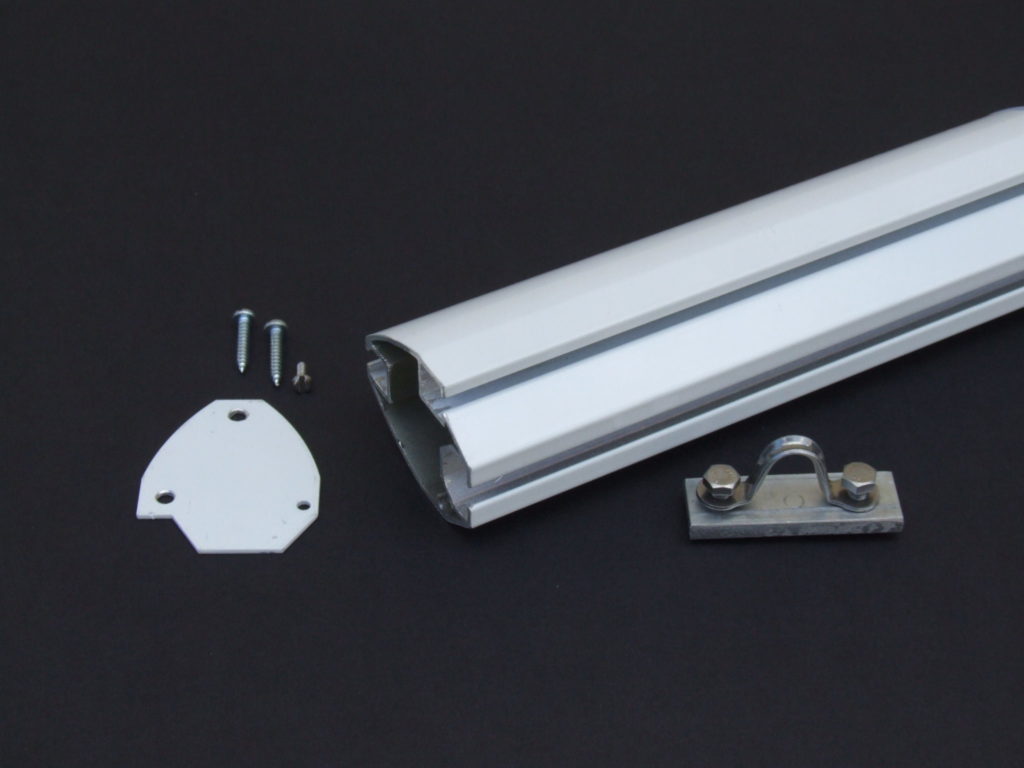

Bottom bar with flat end cap

 Bottom bar with flat end cap



Bottom bar with flat end cap

Powder coated aluminium bottom bar, end caps and tie downs sold separately. Lengths available:

  • 2.90 meter
  • 3.52 meter
  • 4.00 meter
  • 4.70 meter
  • 5.00 meter
  • 5.80 meter

Longer lengths available on request.

Bottom Bar with guide roller end cap

Bottom Bar with guide roller end cap





Bottom bar with guide roller end cap

Bottom bar available as above, this guide roller end cap is for use with the side channels.

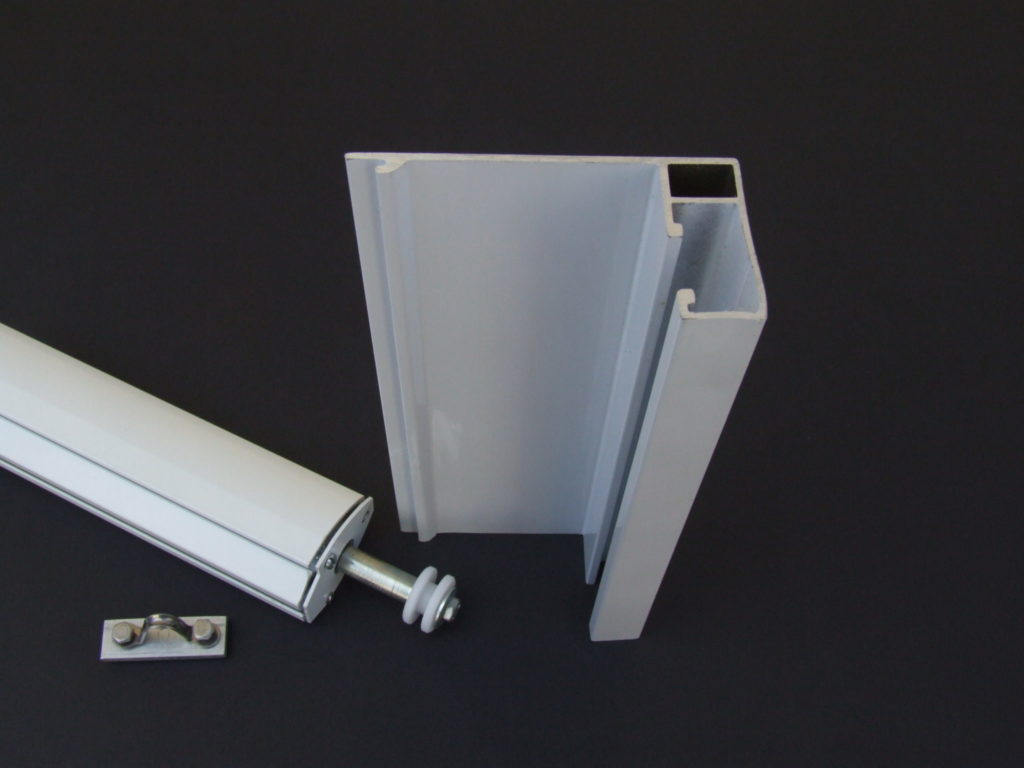

Side channel with bottom bar

 Side channel with bottom bar





Side channel with bottom bar

Powder coated side channels for use with guide roller end caps. Sold in 3 meter lengths.

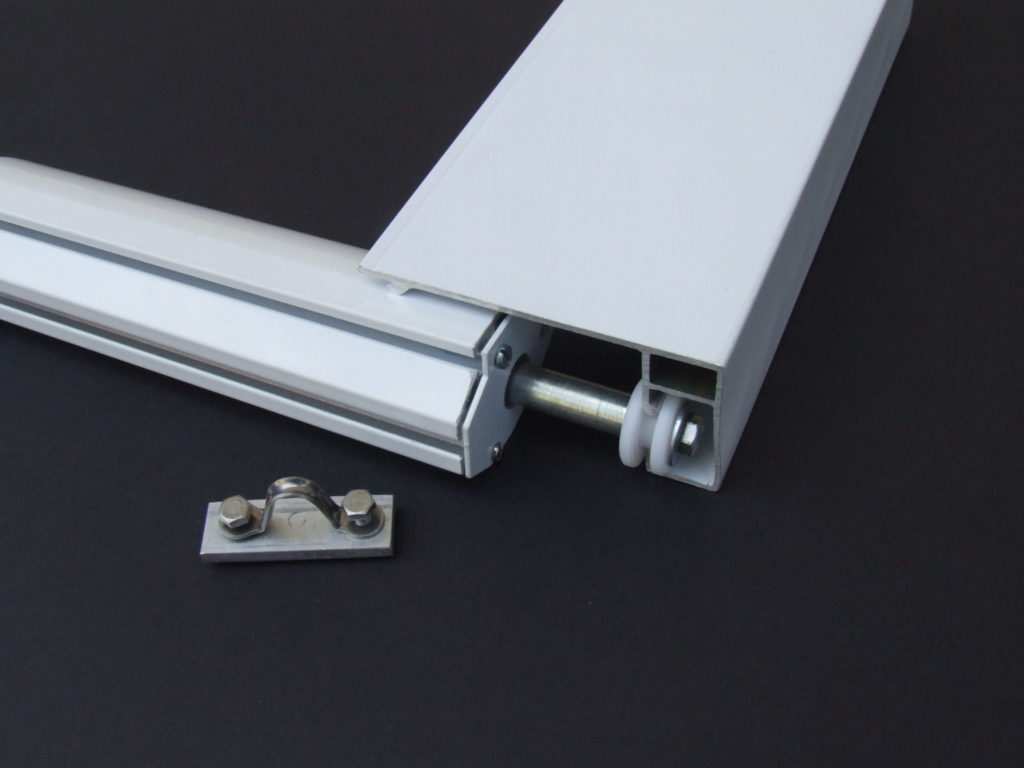

Side channel with bottom bar

Side channel with bottom bar 2





Side channel with bottom bar

Another view of how the guide fits into the side channel.

PVC Pipe

PVC Pipe





PVC Pipe

6.00mm PVC pipe sold in 6.00 meter lengths. Used to attach the fabric to the top roller and bottom bars.

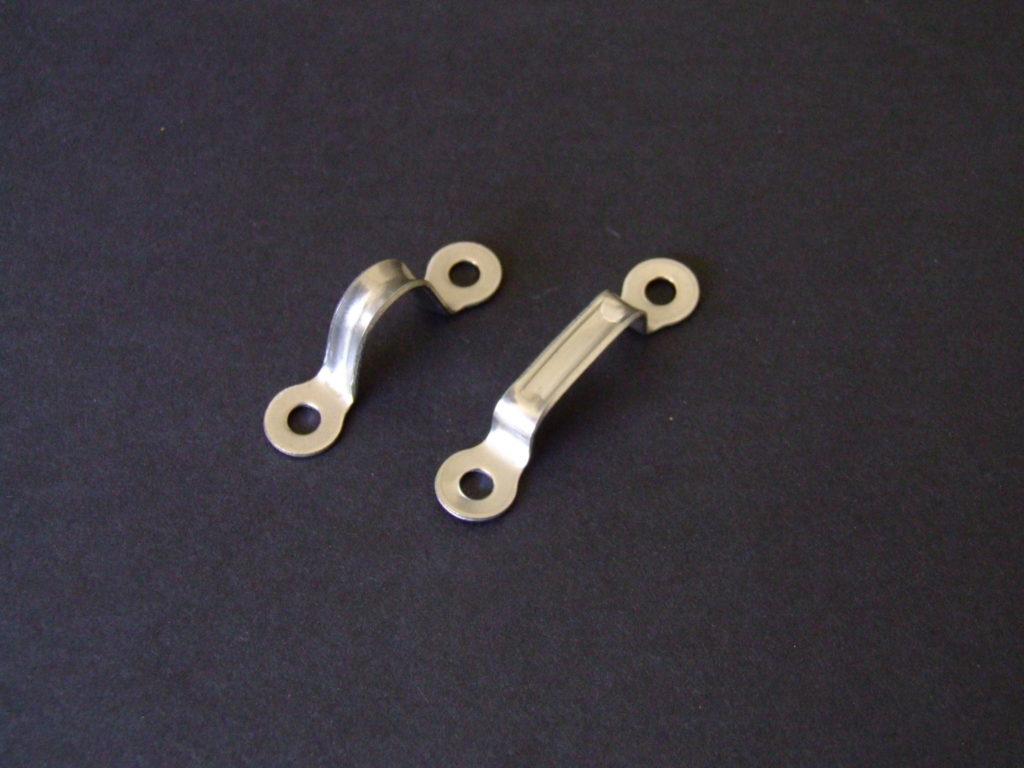

Saddles

Saddles





Saddles

Stainless steel square and round saddles.

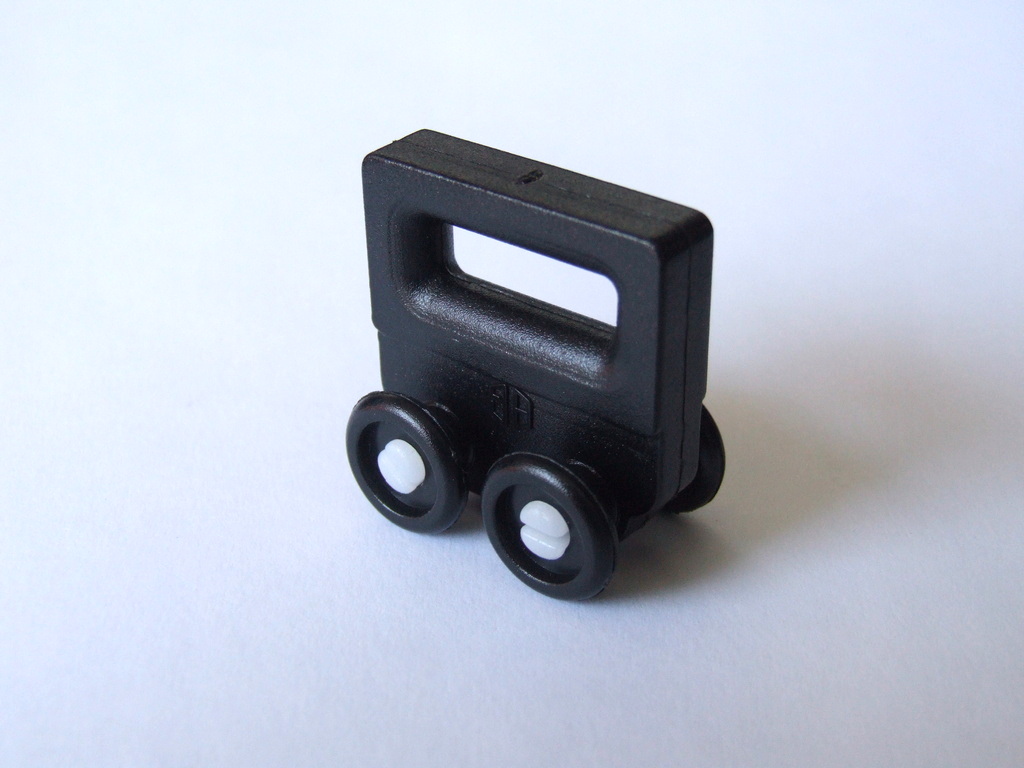

Runner

Runner



Runner

Plastic pergola awning runner.

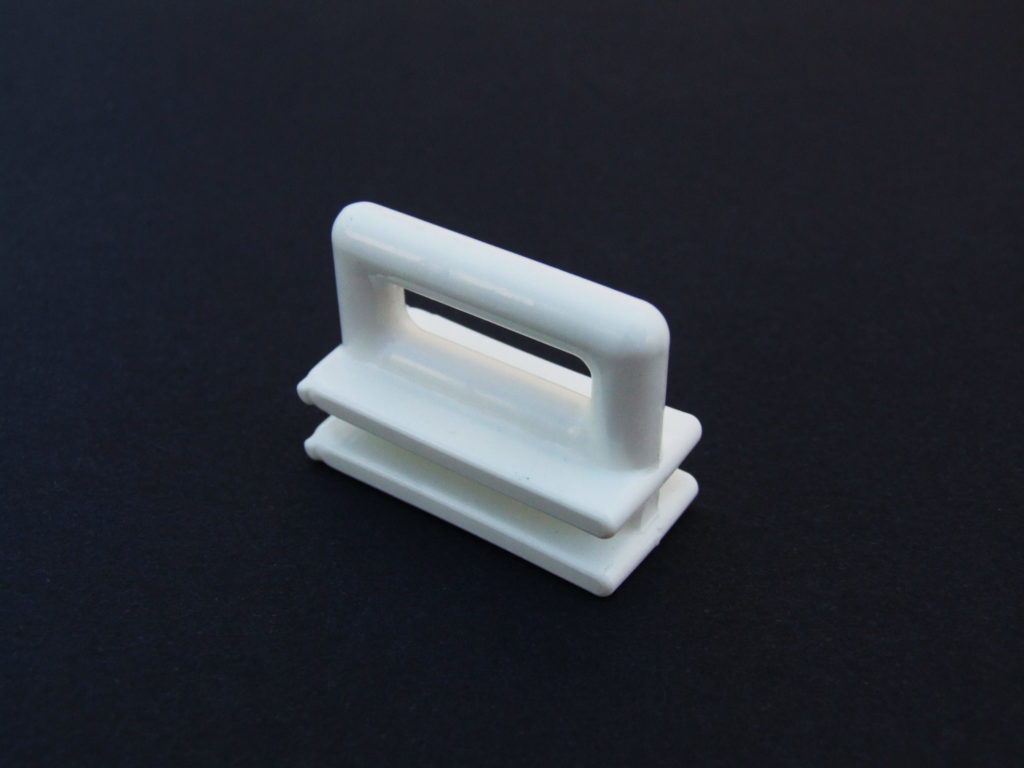

Slide

Slide



Slide

White plastic pergola blind slide.

Pelmets

Pelmets



Pelmets

Aluminium pelmet extrusions used to make pelmets for drop blinds, fall arm awnings and folding arm awnings. Each type of pelmet uses the same extrusions with specific end plates for the different type of pelmet required.

Drop blind and fall arm awnings require 2 extrusions whereas the folding arm requires 3.

Weather sealing rubber strip and aesthetic plastic insert available as well.

Extrusion lengths available:

3.00 meter

3.50 meter

4.00 meter

5.00 meter

6.00 meter

7.50 meter

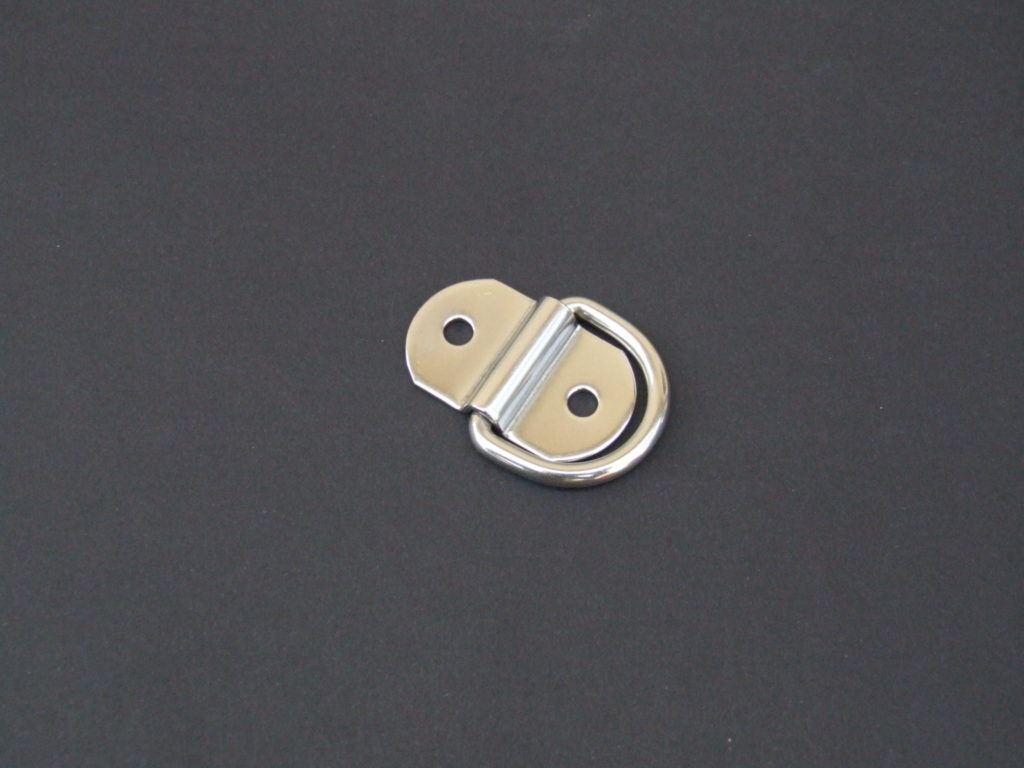

Collapsable Saddle

Collapsable Saddle





Collapsable Saddle

Stainless steel collapsable saddle.

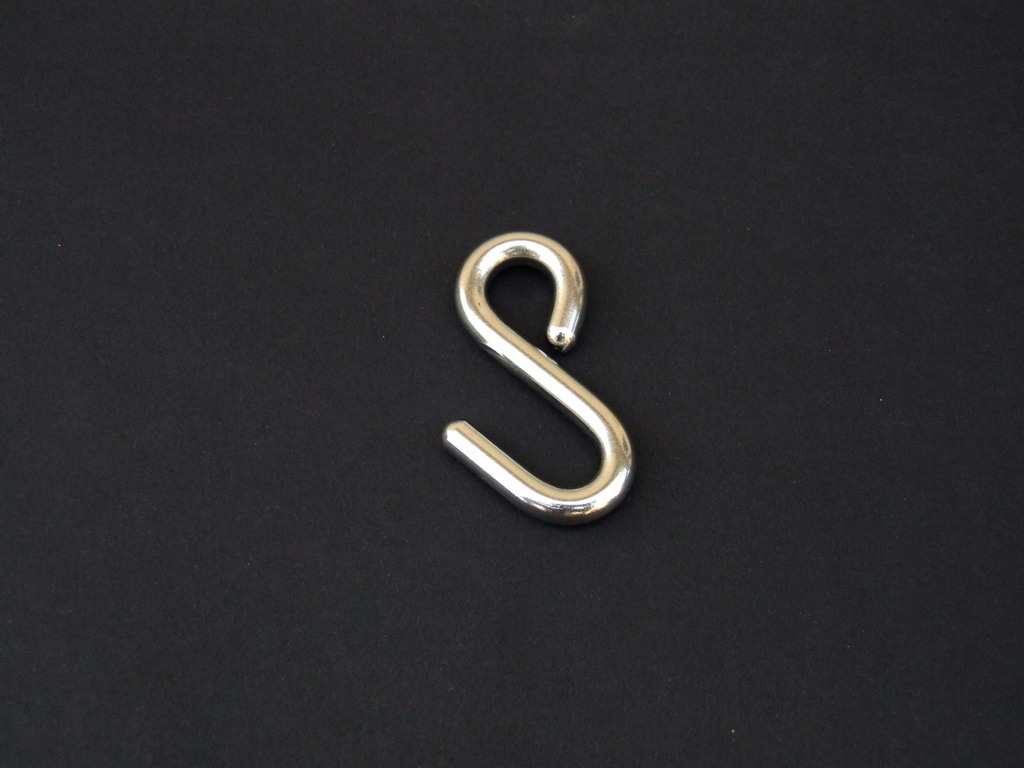

S-Hook

S-Hook





S-Hook

Stainless steel 6mm S-Hook.

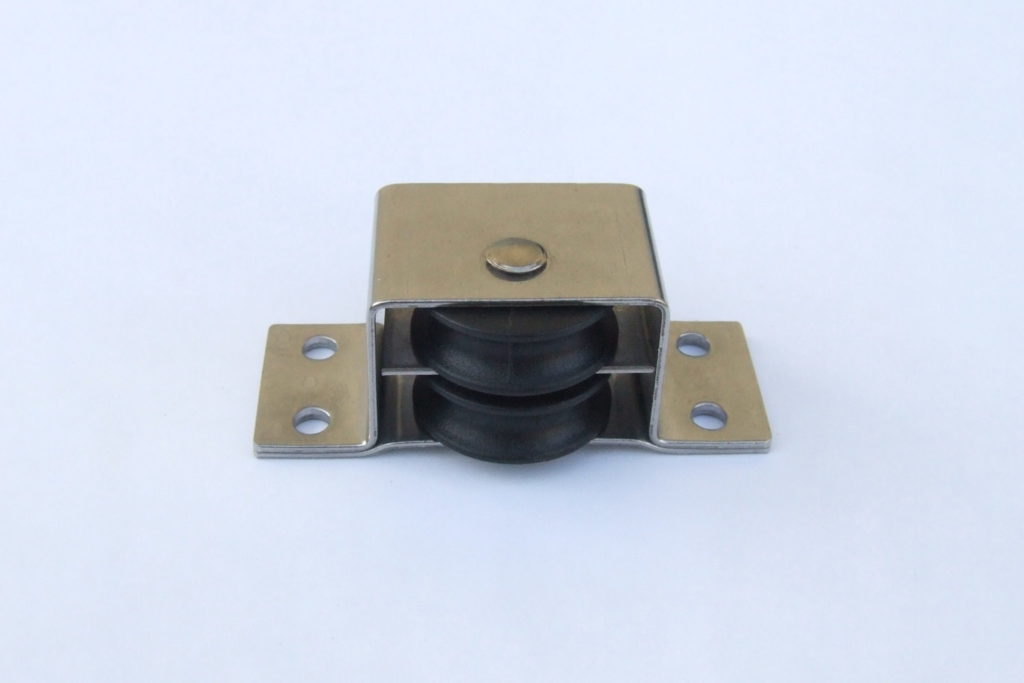

Double Side Pulley

Double Side Pulley





Double Side Pulley

Stainless steel double pulley for side mounting.

Double Round Pulley

Double Round Pulley





Double Round Pulley

Stainless steel double round pulley.

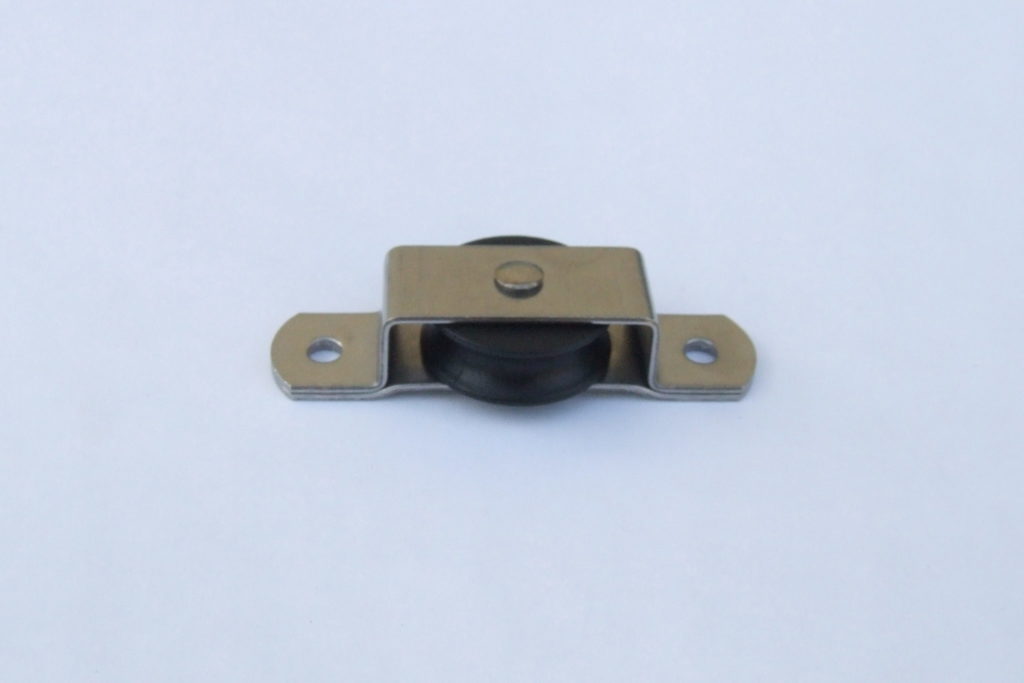

Single Side Pulley

Single Side Pulley





Single Side Pulley

Stainless steel single pulley for side mounting.

Single Round Pulley

Single Round Pulley



Single Round Pulley

Stainless steel single round pulley.

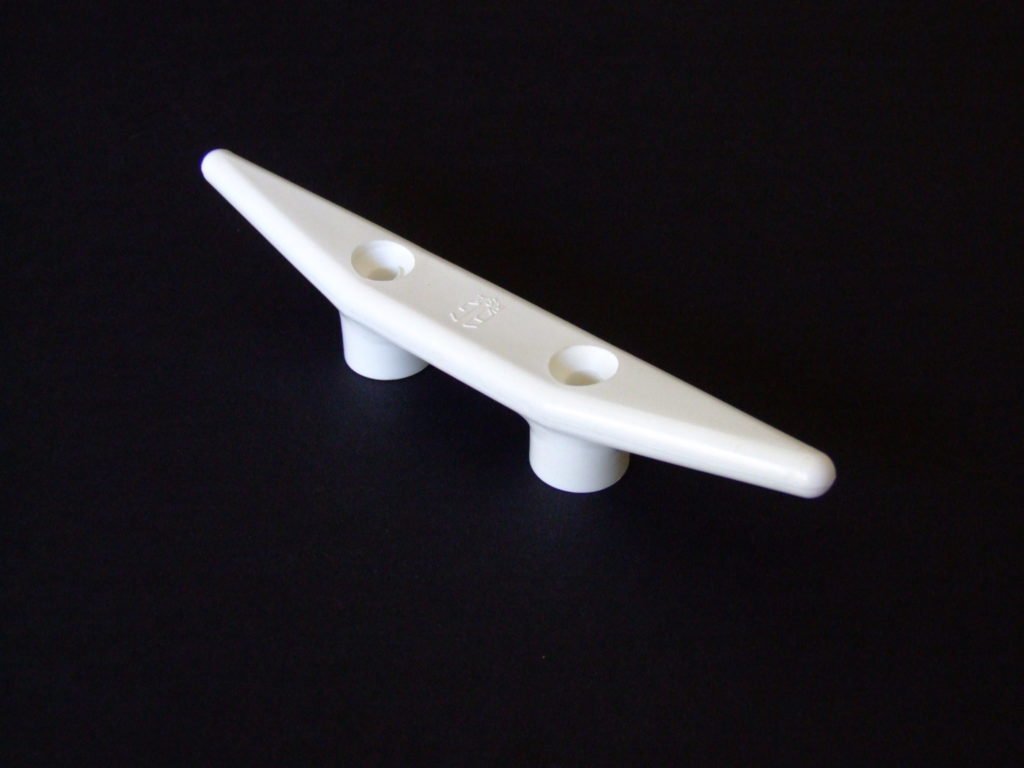

Bar Cleat

Bar Cleat



Bar Cleat

White plastic bar cleat.

Stainless Steel Carabiner

Stainless Steel Carabiner



Stainless Steel Carabiner
